Name: Baby Lock Radiance Sewing & Embroidery Machine
Brand: Baby Lock
SKU: BLRA
Price: 24999.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

Roll over image to zoom in Click on image to zoom

***This item can only be purchased locally at our retail location.***

For our Nebraska location: Please call 402-884-2096 for details or visit our store at 10351 Portal Rd #111, La Vista, NE 68128.

For our South Dakota location: Please call (605)-791-0452 for details or visit our store at 413 N Cambell St #200, Rapid City, SD 57701.

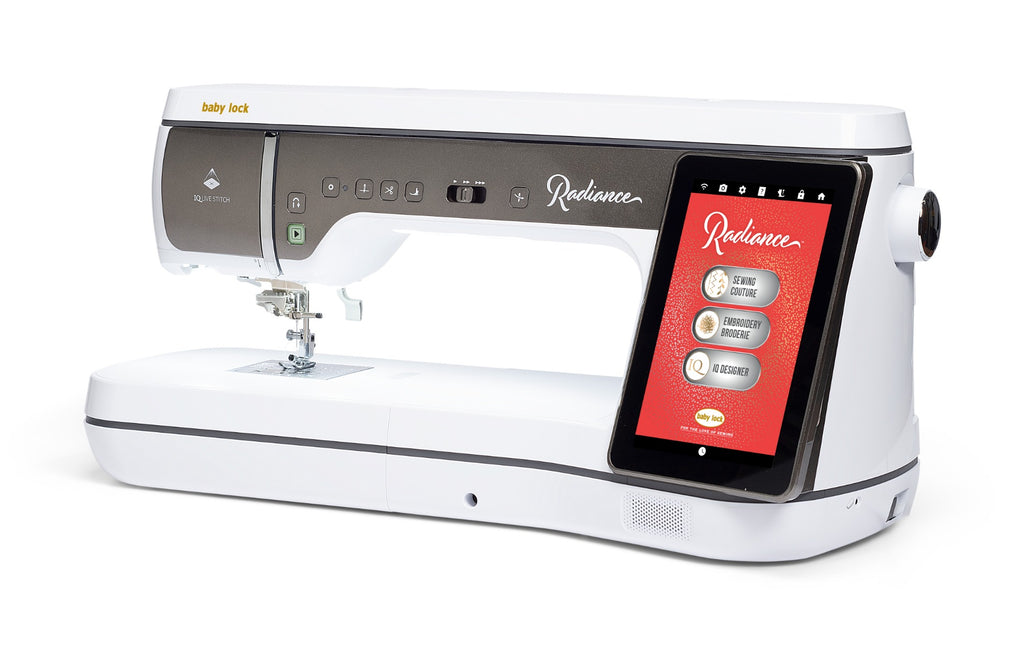

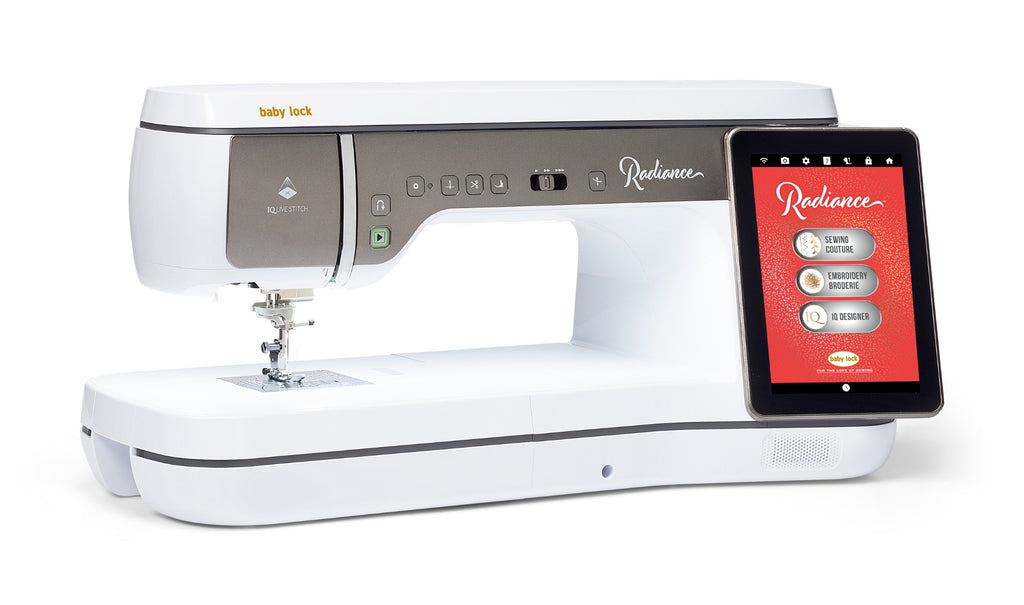

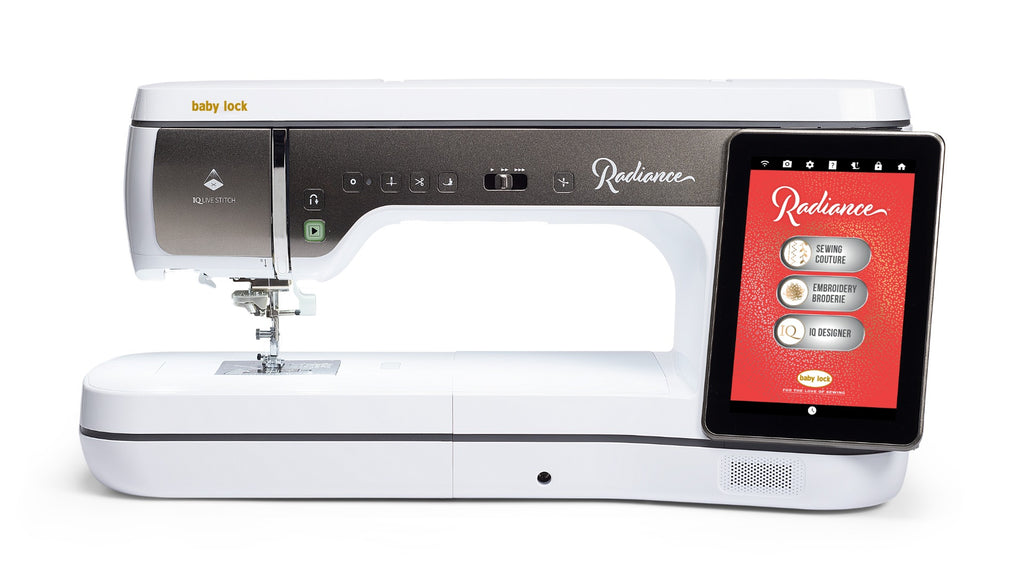

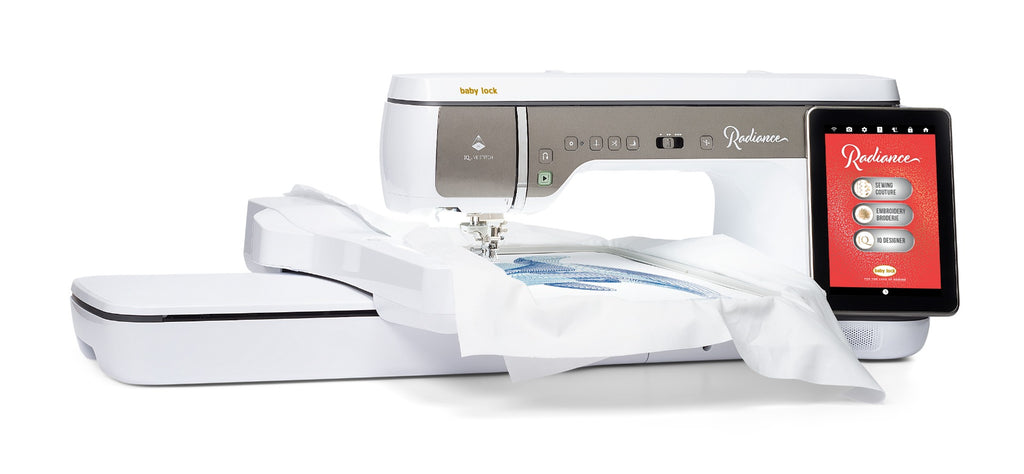

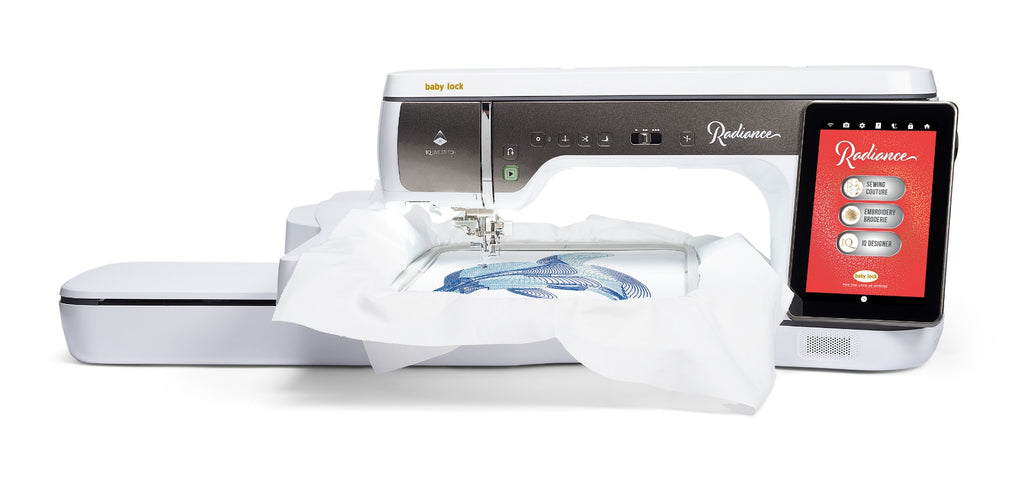

Baby Lock Radiance BLRA Sewing, Embroidery and Quilting Machine

Give larger sewing, embroidery, and quilting projects room to grow with the standard Baby Lock Radiance BLRA. Its 14.1-inch workspace to the right of the needle pairs with large-format embroidery, projected design previews, and camera-assisted positioning.

Highlights

1,610 built-in sewing stitches and 1,858 built-in embroidery designs
11-5/8 × 18-1/4-inch maximum embroidery area with four included hoops
Sewing and embroidery speeds up to 1,050 stitches per minute
IQ Live Stitch projector with an 8 × 5-inch projection area
NeedleCam positioning and projected sewing guidelines
IQ Designer and Picture Play for creating embroidery
Included StitchSync regulator with Intermittent, Continuous, and Basting modes
Compact Digital Dual-Feed System and Automatic Fabric Sensor System
NeverMiss automatic needle threading, automatic thread cutting, and automatic presser-foot lift
Color LCD touchscreen and adjustable Enhanced Stadium LED lighting

Included with the machine

The Radiance includes four embroidery hoops, embroidery foot “W,” a StitchSync regulator with three feet, a compact digital dual feed foot, an advanced multi-function foot controller, an adjustable knee lifter, and an embroidery support table. A scanning frame, dual-purpose stylus, specialty feet, and other standard tools are also included. See Machine specifications for the full standard accessory list and warranty details.

Optional accessories and membership

The W+ embroidery foot with LED pointer, additional and magnetic hoops, Palette software, and purchased upgrade kits are optional and are not included in the standard accessory package. Promotional bundles are not included unless specifically confirmed by Fabric Bash.

Love of Sewing Level 4 membership is optional and sold separately. This four-year membership is not included with the machine. Contact Fabric Bash to discuss membership options.

Contact Fabric Bash

This machine is available by inquiry rather than online checkout. Contact Fabric Bash for availability, purchase details, and help choosing the right setup.

Baby Lock guides and specifications

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

My new Radiance

Have only had time to hem a pair of jeans for my sister and do 3 small 8X8 blocks of embroidery. Love the way it sews. So much quieter than my other machine. Embroidery is beautiful. Can't wait to start on a large project

Baby Lock Radiance

Machine specifications

At a glance

Model: BLRA
Screen and display: WXGA IPS TFT color LCD touchscreen
Workspace: 14.1 inches to the right of the needle
Needle threading: NeverMiss automatic advanced needle-threading system
Bobbin type: Class 15; Quick-Set top-loading bobbin with sensor
Work-area lighting: Enhanced Stadium LED lighting with five brightness settings
Speed control: Variable sewing-speed slider; on-screen maximum embroidery-speed setting
Stitch regulation: Included StitchSync regulator with Intermittent, Continuous, and Basting modes
Manual: View manual (opens in a new tab)
Spec sheet: View or print spec sheet (opens in a new tab)
Machine weight (lb): 43
Key features: 14.1-inch workspace to the right of the needle
1,610 built-in sewing stitches
1,858 built-in embroidery designs
11-5/8 × 18-1/4-inch maximum embroidery area
Four included embroidery hoops
Sewing and embroidery speeds up to 1,050 stitches per minute
IQ Live Stitch projector with an 8 × 5-inch projection area
NeedleCam positioning and projected sewing guidelines
IQ Designer and Picture Play
Included StitchSync regulator with three operating modes
Compact Digital Dual-Feed System
NeverMiss automatic needle threading
Automatic thread cutting and presser-foot lift
Automatic Fabric Sensor System
Enhanced Stadium LED lighting
Included advanced multi-function foot controller and knee lifter
Included embroidery support table
USB and wireless design transfer

Sewing

Machine type: Computerized
Best for: Large-format embroidery, quilting, free-motion quilting, garment sewing, and larger sewing projects
Built-in stitches: 1,610
Sewing speed (stitches/minute): 1,050
Maximum stitch width (mm): 7
Maximum stitch length (mm): 5
Feed system: Compact Digital Dual-Feed System; lateral and diagonal feeding
Presser-foot pressure: Automatic Fabric Sensor System with on-screen presser-foot pressure adjustment
Buttonholes: 15 one-step buttonhole styles and one four-step custom buttonhole
Free arm: Yes
Knee lift: Included adjustable knee lifter with three-position handle
Needle up/down: Yes
Adjustable needle position: Yes
Drop feed: Yes
Extension table: Included embroidery support table; flatbed attachment provides accessory storage

Embroidery

Machine function: Sewing and embroidery
Built-in designs: 1,858
Embroidery speed (stitches/minute): 1,050
Maximum embroidery area (in): 11-5/8 × 18-1/4
Included hoops: 4 × 4 in (100 × 100 mm)
5 × 7 in (130 × 180 mm)
10-5/8 × 10-5/8 in (272 × 272 mm)
11-5/8 × 18-1/4 in (297 × 465 mm)
Design transfer: USB flash drive; wireless transfer using Design Database Transfer or optional Palette version 11 or later
On-machine design editing: Combine, duplicate, group, and align patterns
Select and edit multiple patterns
Rotate, resize, and mirror patterns
Edit lettering, character spacing, and text arrangement
Change thread colors and use Color Visualizer
Sort thread colors and adjust the embroidering order
Deselect regions with No Sew
Add basting, appliqué, stippling, echo quilting, and decorative fills
Use camera positioning and projected design previews
Create and edit embroidery using IQ Designer
Convert compatible image files using Picture Play
Automatic jump-stitch trimming: Yes
Needle count: 1

Included accessories

Zigzag foot “J” (installed on machine)
Advanced monogramming foot “N+”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A+”
Buttonhole foot stabilizer
Blind stitch foot “R”
Button fitting foot “M”
1/4-inch quilting foot with guide
Straight stitch foot
Free-motion quilting foot “C”
Free-motion open toe quilting foot “O”
Free-motion echo quilting foot “E”
Presser-foot adapter
Small screw
Stitch regulator
Stitch regulator quilting foot
Stitch regulator open toe quilting foot
Stitch regulator echo quilting foot
Embroidery foot “W”
Compact digital dual feed foot with regular sole
Couching dual feed sole
Embroidery couching foot “Y”
Yarn guide
Yarn threader
Needle set: two 75/11, two 90/14, and two gold-colored 90/14 ballpoint needles
Twin needle, 2/11
Two 75/11 HAX130EBBR embroidery ballpoint needles
Ten bobbins (one installed on machine)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Small screwdriver
Large screwdriver
Multi-purpose screwdriver
Small spool cap
Two medium spool caps (one installed on machine)
Large spool cap
Thread spool insert for mini king thread spool
Spool stand
Two XL spool caps for spool stand
Two spool holders for spool stand
Two spool-cap bases for spool stand
Two spool felts for spool stand
Four rings for spool stand
Spool felt (installed on machine)
Two spool nets
Embroidery needle-plate cover
Knee lifter
Alternate bobbin case with no color on adjusting screw
Standard bobbin case with green marking on adjusting screw (installed on machine)
Straight stitch needle plate
Cord guide bobbin cover
Marked bobbin cover (installed on machine)
Bobbin cover on straight stitch needle plate
4 × 4-inch embroidery frame
5 × 7-inch embroidery frame
10-5/8 × 10-5/8-inch embroidery frame
11-5/8 × 18-1/4-inch embroidery frame
Scanning frame
Six magnets
Embroidery bobbin thread
Two embroidery-positioning sticker sheets
White solid calibration stickers
Stabilizer material
Dual-purpose stylus
Accessory case
Advanced multi-function foot controller with side pedal, mounting plate, and two mounting screws
Bobbin center pin and instruction sheet
Power cord
Four end-point sticker sheets, 243 stickers per sheet
Quick Reference Guide
Product Safety Guide
Embroidery support table

Warranty

25-year limited product casting
10-year defective parts
5-year circuit boards
5-year electrical
1-year labor
