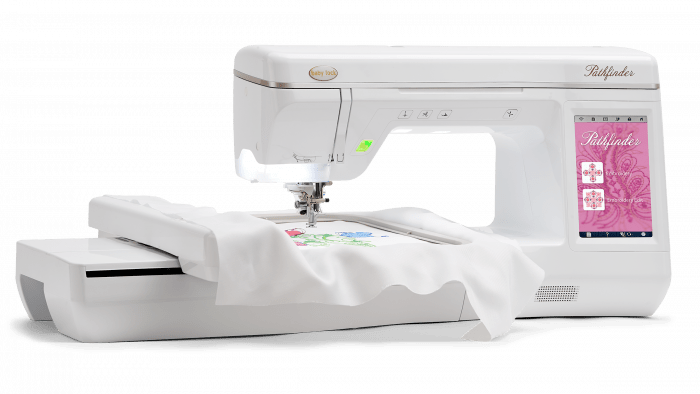

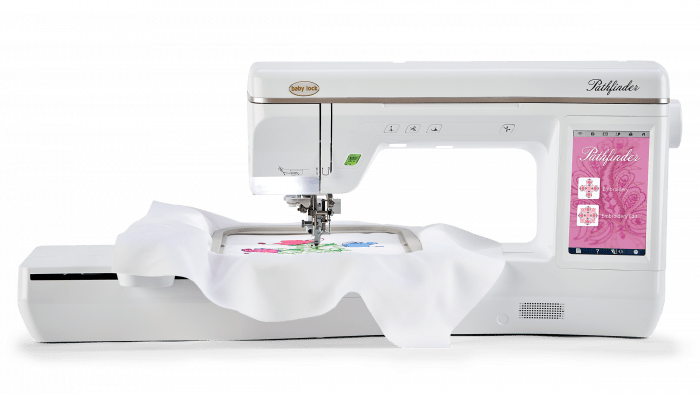

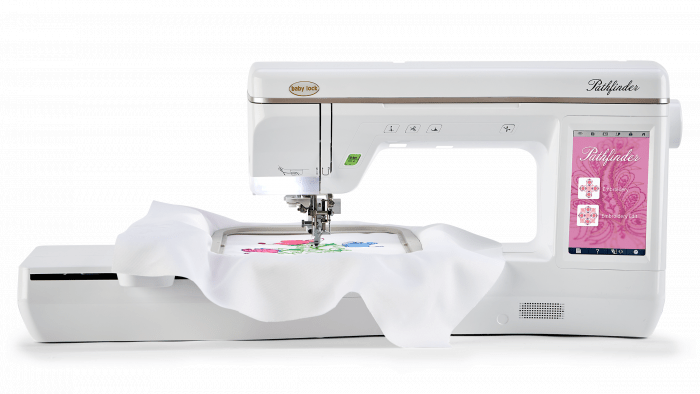

Baby Lock Pathfinder Embroidery Machine
The Baby Lock Pathfinder BLPF is a discontinued embroidery-only machine, replaced by the Baby Lock Reflection. This page preserves the original model’s features, specifications, and accessory information for owners and anyone researching the machine.
Its 8-inch by 12-inch embroidery area, 7-inch color touchscreen, and sensor-assisted positioning provide room for personalization and decorative projects. Choose from 263 built-in embroidery designs, 19 lettering font styles, and 140 frame-pattern combinations.
Highlights
- Maximum embroidery area of 8 inches by 12 inches (200 by 300 mm).
- 263 built-in embroidery designs, 19 lettering font styles, and 140 frame-pattern combinations.
- 7-inch LCD color touchscreen for settings, previews, and on-machine editing.
- NeverMiss push-button automatic needle threading for compatible needles and threads.
- Included sensor pen for embroidery positioning.
- Included W+ embroidery foot with LED needle-drop pointer.
- Embroidery speeds up to 1,050 stitches per minute.
- Automatic end-color cutting and adjustable jump-stitch trimming.
- Push-button presser-foot lifting and automatic lifting after a color finishes.
- Upper-thread detection and an almost-empty bobbin alert.
- Quick-Set top-loading bobbin and independent variable-speed bobbin winding with automatic completion.
- Adjustable needle-area and work-area lighting brightness.
Embroidery editing and design transfer
Combine, reposition, rotate, resize, duplicate, and horizontally mirror supported patterns directly on the machine. Adjust lettering layouts and spacing, create multi-line text, change thread colors, create repeating borders, add alignment thread marks, and use embroidery basting. Available editing functions depend on the selected pattern.
Transfer designs using compatible USB media or the included USB cable connected to a computer. The instruction manual lists .pes, .phc, and .dst embroidery formats. Tajima .dst files use default thread colors and appear by filename rather than thumbnail in the pattern list. Machine-saved embroidery patterns use .phc format.
The manual documents Windows 7, Windows 8.1, and Windows 10 for direct computer transfer; compatibility with other operating systems should be confirmed. Patterns held temporarily in the connected-computer transfer area are cleared when the machine is turned off, so retain a permanent copy.
Included with the original machine package
The original package includes two embroidery frame sets with grids: 8 inches by 12 inches (200 by 300 mm) and 5 inches by 7 inches (130 by 180 mm), plus the W+ embroidery foot with LED pointer, sensor pen and holder, stylus, and USB cable.
Also listed in the manual are the standard needle set, embroidery ballpoint needle set, 10 bobbins including the installed bobbin, seam ripper, scissors, cleaning brush, small and large screwdrivers, disc-shaped screwdriver, vertical spool pin, small spool cap, two medium spool caps, large spool cap, mini-insert spool cap, spool felt, two spool nets, embroidery needle plate cover, installed bobbin case with no color on its adjustment screw, gray bobbin-work case, bobbin center pin and instruction sheet, installed bobbin cover, embroidery bobbin thread, stabilizer material, power cord, dust cover, accessory bag, Instruction and Reference Guide, and Quick Reference Guide.
This is a reference to the original manufacturer package, not a promise of what accompanies a used machine. Included accessories may vary by country or region.
Optional accessories
The manufacturer spec sheet lists Palette 11 embroidery software, Baby Lock stabilizer, and the BL-COVERXL canvas dust cover as optional accessories sold separately. The optional canvas cover is distinct from the dust cover listed in the original accessory package.
The manual also lists additional compatible embroidery frames, border frames, thread stands, an embroidery foot with mid shank, a bobbin-work kit, and a USB mouse as optional accessories. Current availability and compatibility should be confirmed with Fabric Bash. Palette 11 software is not included with the machine.
Size and embroidery details
Machine-only weight is approximately 30.6 pounds. The embroidery unit is separately listed at approximately 8.5 pounds. Machine-only dimensions are approximately 22-1/2 inches wide by 11-3/16 inches deep by 13-1/16 inches high. With the embroidery unit attached, dimensions are approximately 32-1/16 inches wide by 18-1/4 inches deep by 13-1/16 inches high.
Standard maximum embroidery speed settings are 350, 600, or 1,050 stitches per minute. Bobbin-work designs use settings of 100, 200, or 350 stitches per minute. The manual recommends 75/11 needles for embroidery and 90/14 needles for heavyweight fabrics or stabilizers.
Original manufacturer warranty information
The supplied warranty chart lists 25 years for product casting, 10 years for defective parts, 5 years for circuit boards, 5 years for electrical components, and 1 year for labor. Coverage depends on the original warranty terms, purchase date, and eligibility. These original durations do not establish current warranty coverage for an individual or used machine.
Manufacturer guides
Pathfinder Manufacturer Spec Sheet
Owner support and replacement model

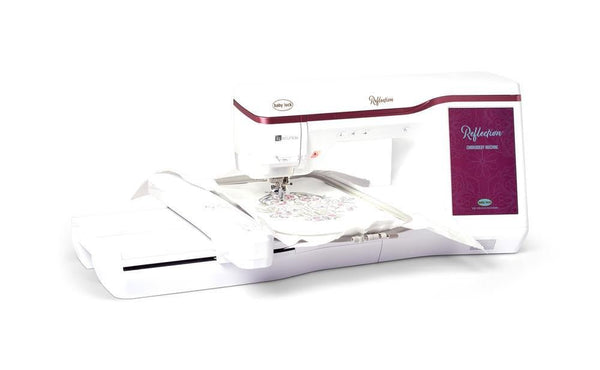

The Baby Lock Reflection replaces Pathfinder. This relationship does not imply that accessories or software are interchangeable between the models.
Already own a Pathfinder? Contact Fabric Bash for help with service, parts, and accessory compatibility. Availability varies by model.
